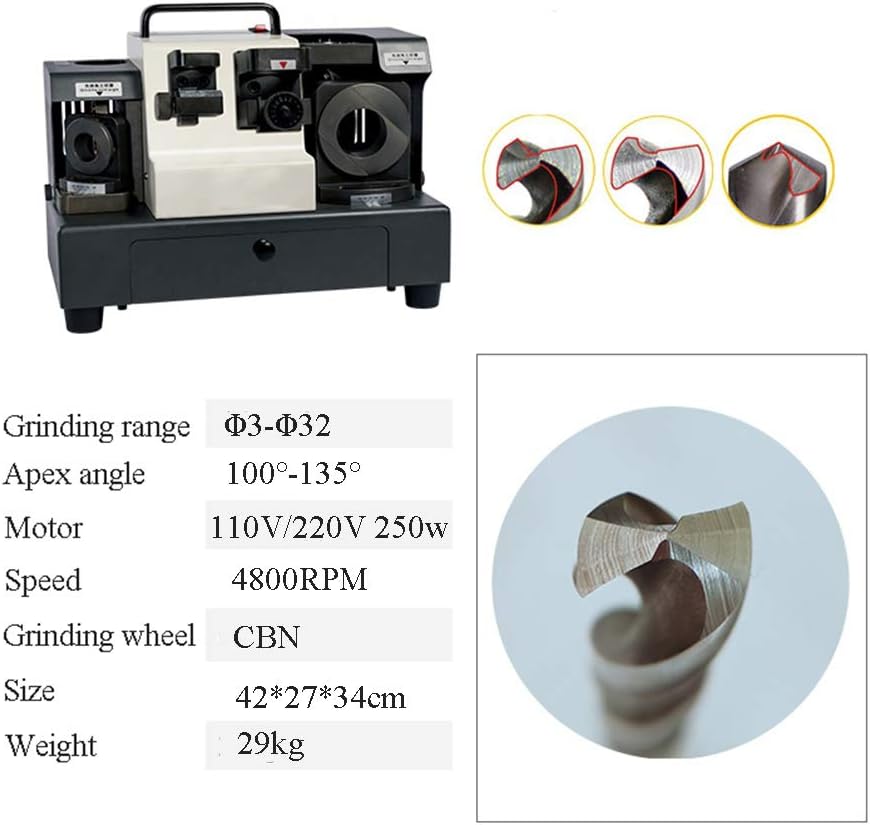

MXBAOHENG Compound Drill Bit Grinding Machine Electric Drill Bit Grinding Sharpening Machine Φ3 - Φ32 (110V)

Parameters:Model: TX-Z32Grinding Range: Ф3-Φ32Point Angle: 100°~135°Power: 110V/220VMotor: 250WSpeed: 4800rpmDimension: 42*27*34cmWeight: 29kgStandard Equipment:Grinding wheel: CBN (for HSS) ×1Thirty collets: Φ3、Φ4、Φ5、Φ6、Φ7、Φ8、Φ9、Φ10、Φ11、Φ12、Φ13、Φ14、Φ15、Φ16、Φ17、Φ18、Φ19、Φ20、Φ21、Φ22、Φ23、Φ24、Φ25、Φ26、Φ27、Φ28、Φ29、Φ30、Φ31、Φ32

• Product:Z32 type is a composite drill grinding machine, which can grind Ф3-Φ32 twist drills. Z32 is left and right double-headed grinding. The left side is for grinding the drill in the diameter range of Ф3-Φ13, which is configured as an ER20 collet, and the right side is for grinding the drill in the diameter range of Ф14-Φ32, which is configured as an ER40 clamp.
• Z32 is a compound double-head grinding machine. The left side is the 3-13 small drill grinding seat. The tool setting seat and the grinding seat share a motor, and the grinding efficiency is high.
• On the right is the 14-32 large drill bit grinding seat. The grinding hole is customized based on the size of the grinding chuck group, which can be easily inserted and repaired, which is simple and convenient.
• The body size is small and can be lifted with one hand. Small footprint which can be suitable for grinding work anywhere.
