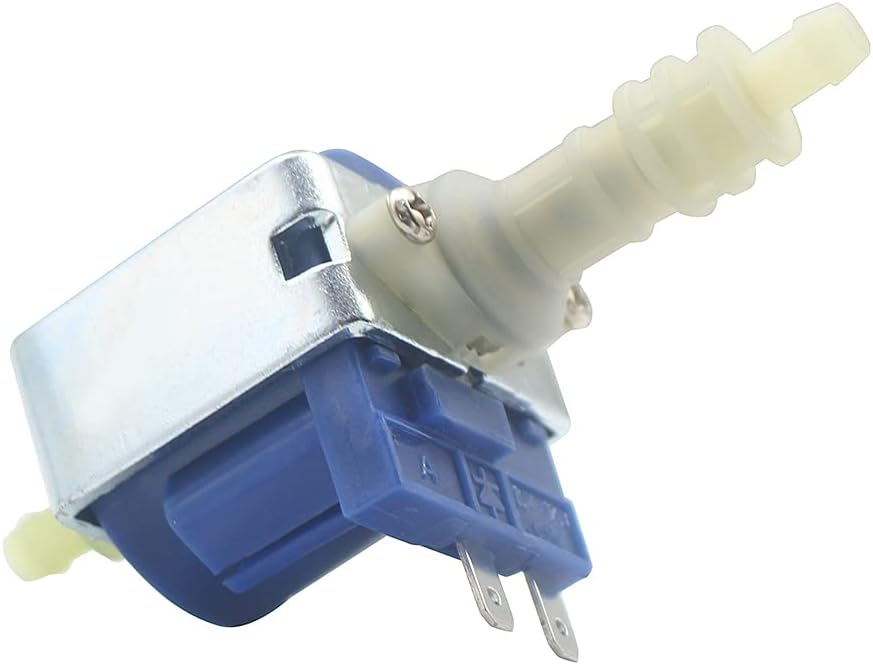

JIAYIN JYPC-4 Series 22W AC 100V - 120V 750cc/min Original Plunger Type Water Suction Piston Pump Electromagnetic Pump for Hot Water Dispenser

New original part Brand / Model: JiaYin / JYPC-4 Pump shaft position: horizontal Type: plunger pump Impeller structure: closed impeller Number of impellers: single stage Flow rate:750±15% cc/min Flow control range: ±15% Model: JYPC-4 Brand: JiaYin Working pressure: ≥1.5bar Net Weight: 137±5g Material: plastic Uses: pumping Insulation class：H Drive mode: electromagnetic Flow Test Method:13.8 inch silicon tube,which is outer diameter is 0.31 inch,inner diameter is 0.16 inch, connected to water inlet port. Connection method:cannula Ambient temperature: Ta 70℃ Fluid temperature: Tf 60℃

• Rated Voltage：AC 100V - 120V 60Hz 20W
• No rust, no clogging, clear printing。
• Pressure: ≥1.5bar。
• Flow: 750±15% cc/min。
• Working medium: Water or non-corrosive liquid。
