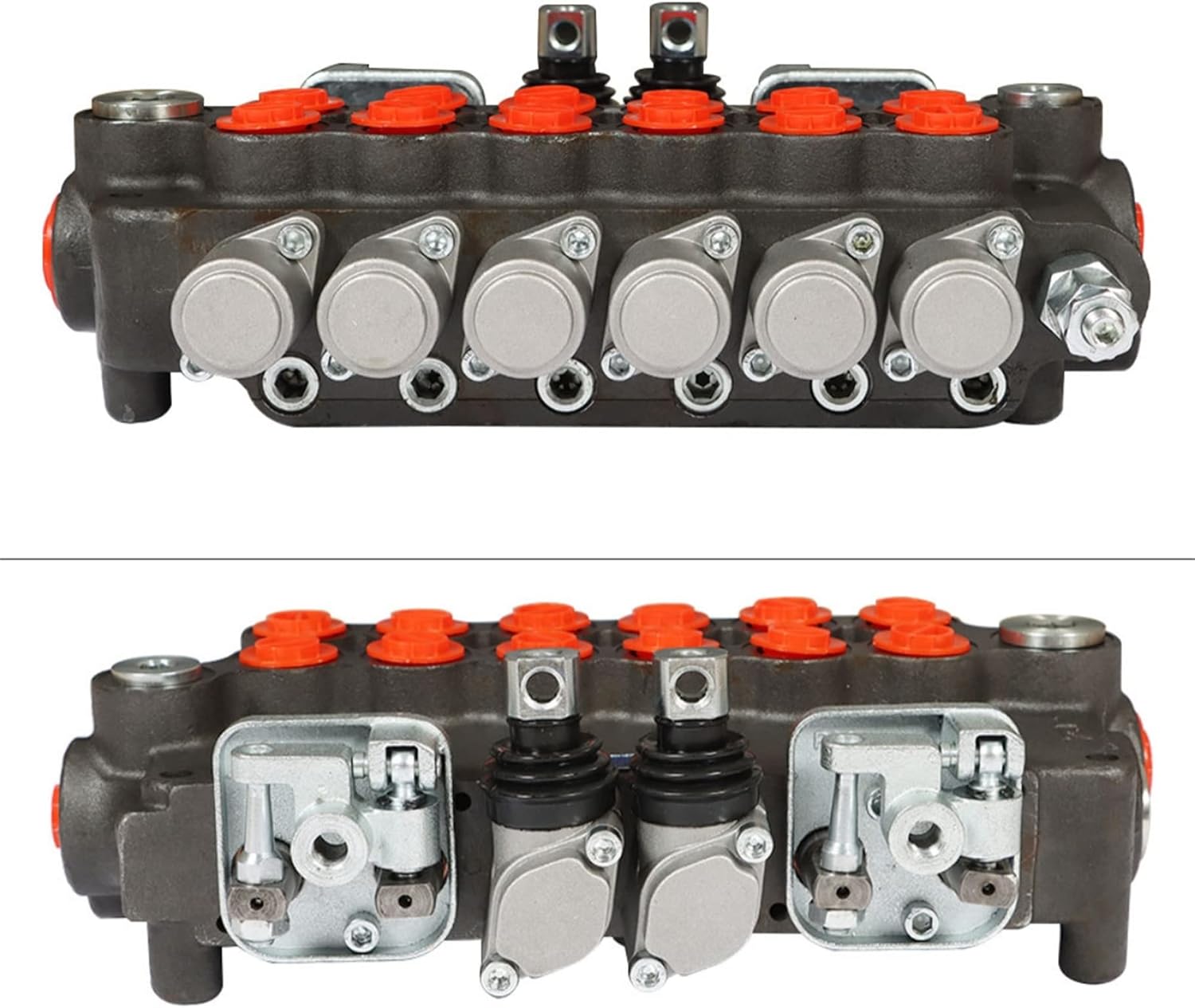

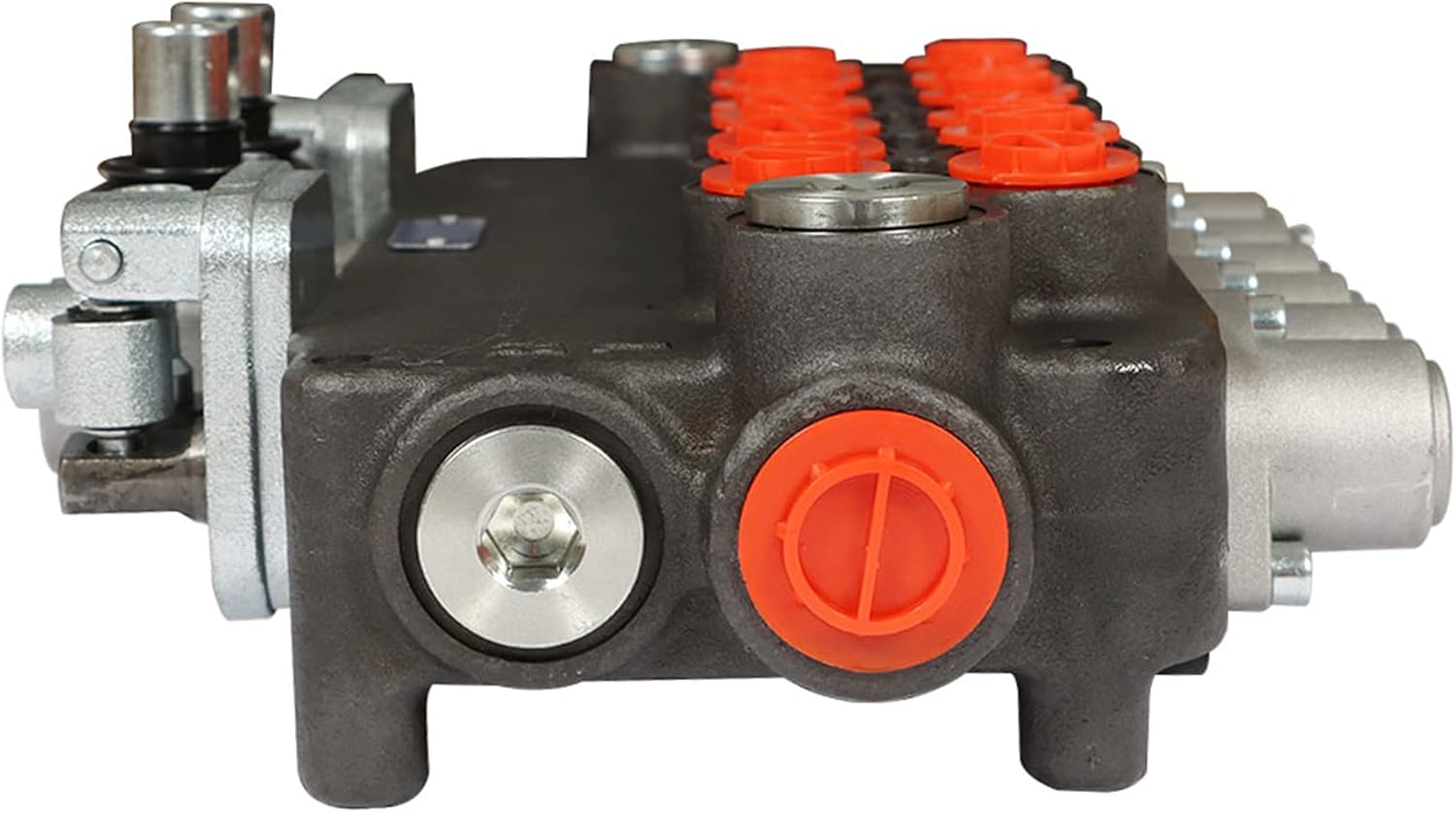

6 Spool 21GPM Hydraulic Directional Control Valve, 3625PSI SAE Ports Double Acting Hydraulic Valve with Joystick

Hydraulic Valve 6 Spool 21GPM 3625PSI SAE Ports Double Acting Hydraulic Directional Control ValveSpecification:Mounting Holes: 3-5/16"Flow Rating: 21GPM (80 l/min)Preset Pressure Relief: 2610PSIInlet Port: 10 SAE O-Ring (7/8"-14) ThreadOutlet Port: 12 SAE O-Ring (1-1/16") ThreadA & B Work Ports: 10 SAE O-Ring (7/8"-14) ThreadAdjustable Relief Valve Range: 1500 to 3625PSIMax Operating Pressure: P = 3625PSI, T = 725PSI, A & B = 4350PSIFeatures:1. Capable of closed center or power beyond (conversion plug required)2. Used as motor or single-acting spool possible (10 SAE port plug required)3. 3625PSI with adjustable pressure relief handle for maximum flow of 21GPM4. Used for open center systems (pump to tank flow) - closed center option available5. All spools of the product are standard double acting springs returning to neutral place6. Hydraulic directional valve is suitable for small tractor, tractors loader, light loader, log splitter, etc7. Used to manage and guide the flow of hydraulic oil between hydraulic pumps and hydraulic cylinders, motors, tanks, etc8. This product adopts durable cast iron material and hard chrome plated valve core design to make the product has a long service lifePackage Includes:1 x 6 Spool Hydraulic Directional Control Valve

• Specification: SAE 10 Inlet port, SAE 12 outlet port, SAE 10 working ports, 6 spool, 21GPM flow rating, SAE ports, 3625PSI max pressure
• Material: Made of cast iron construction it have higher strength and durability
• Design: All spools of the product are standard double acting springs returning to neutral place
• Product Use: Fit for small tractor, tractors loader, light loader, log splitter, etc
• Products Include: 1Pcs 6 spool 21GPM 3625PSI SAE ports hydraulic directional control valve
