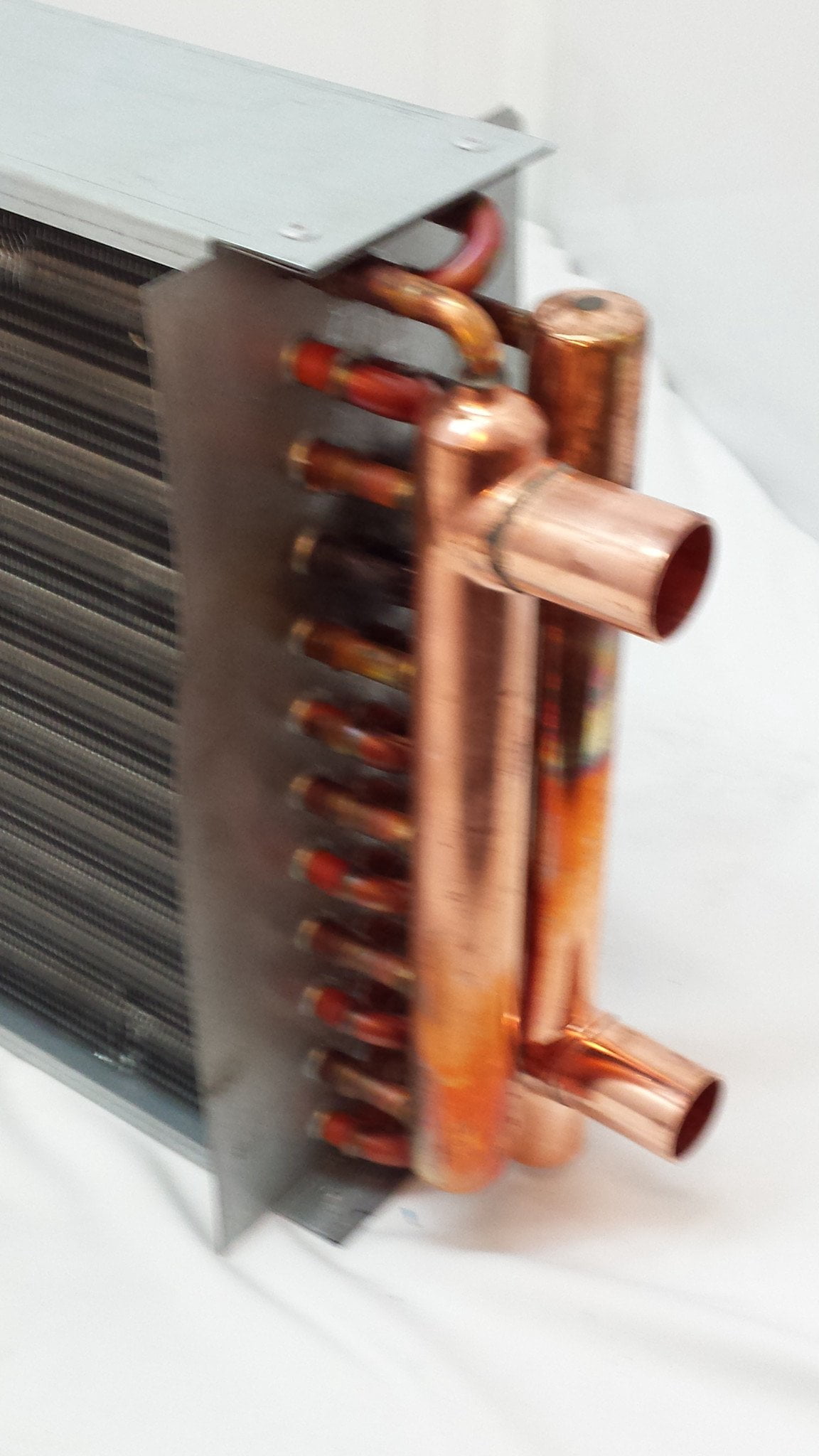

16x18 Water to Air Heat Exchanger~~1" Copper Ports w/ EZ Install Front Flange

16x18 / 115,200 BTUs/ 100 PSI For use in your hot air furnace plenum.

• 16x18 Water to Air Heat Exchanger~~1" Copper Ports w/ EZ Install Front Flange

  Information about our heat exchangers

  • This heat exchanger is ideal for a 16"x 19" plenum or larger.
  • The outlets come out on the 16" side (shown as the vertical side in the picture above)
  • The fin area is 16"x 18"
  • GPM 12
  • CFM 1405
  • Outside Dimensions 16”(width)x21.5”(Length from Manifold to Base)x3.5”(Thickness)
  • There is a 1" frame on the end opposite the outlets that covers the copper elbows. This makes the area inside of your plenum 1" longer.
  • All exchangers are 3 1/2" thick.
  • Aluminum fins are installed at 12 fines per inch.
  • All exchangers are triple pass design.
  • Tubing is 1/4" copper.
  • All our exchangers include the flat front face mounting for easier installation and increased plenum strength.
  • Our exchangers have 1" copper outlets and can be installed with either sweat fittings or push fit type fittings like sharkbite's.
  • Exchangers from us come with a lifetime warranty, including shipping.
  • Exchangers will work with chilled water also.
  • We stock many sizes, always order the largest size that will fit into your plenum.
• ***Not recommended for air compressors***

• These heat exchangers are to be hooked up to a boiler or a chilled water source.

  These heat exchangers can also be used as a stand alone heat source by simply attaching a fan or squirrel cage to one side of the unit. They can be installed in either the hot air side or the cold air return of a furnace. Please note that if installed in the cold air return you will need to install a 3 way zone valve in order for the fan to operate properly.

• We provide a limited lifetime warranty against manufacturer's defects.
